Cutting-edge transparent OLED receives a seamless multitouch upgrade from Zytronic

Development, systems integration and software specialist, SOLIDSENSE™ was set the challenge to create an impressive touch installation for a major trade fair demonstration.

Through the use of Zytronic’s patented projected capacitive technology (MPCT™) combined with its proprietary controller technology, a multitouch, super-slim, interactive transparent OLED (tOLED) display was created that is unparalleled in the Audio Visual (AV) market.

Often, optical-based touch technologies are used in large format AV applications based on perceived cost. However, with such an eye-catching display, this would have created an unsightly border around the tOLED, and therefore did not meet the ‘invisible touch’ design requirements specified by customers. So, in cooperation with partners INNOVATUS and Printec-DS, a bespoke touch solution was developed, which gives a ‘stealth’ interactive upgrade to the transparent, super slim display, which is imperceptible to the user.

Mounted upon LG’s latest 55” tOLED, Zytronic’s ZyBrid® sensor adds responsive multitouch capability, rapidly delivering up to 100 simultaneous points of interaction. Zytronic has invested millions of dollars in its proprietary touch ASIC embedded within the ZXY500™ controller. Consequently, in this application, it was able to be bonded directly, and invisibly, to the surface glass of the tOLED, with no air gap whatsoever between the touch sensor and display. As a result, the parallax was eliminated, assuring precise and accurate touches, and critical for this application, also delivering a stylish frameless design barely thicker than the ultra-slim tOLED itself.

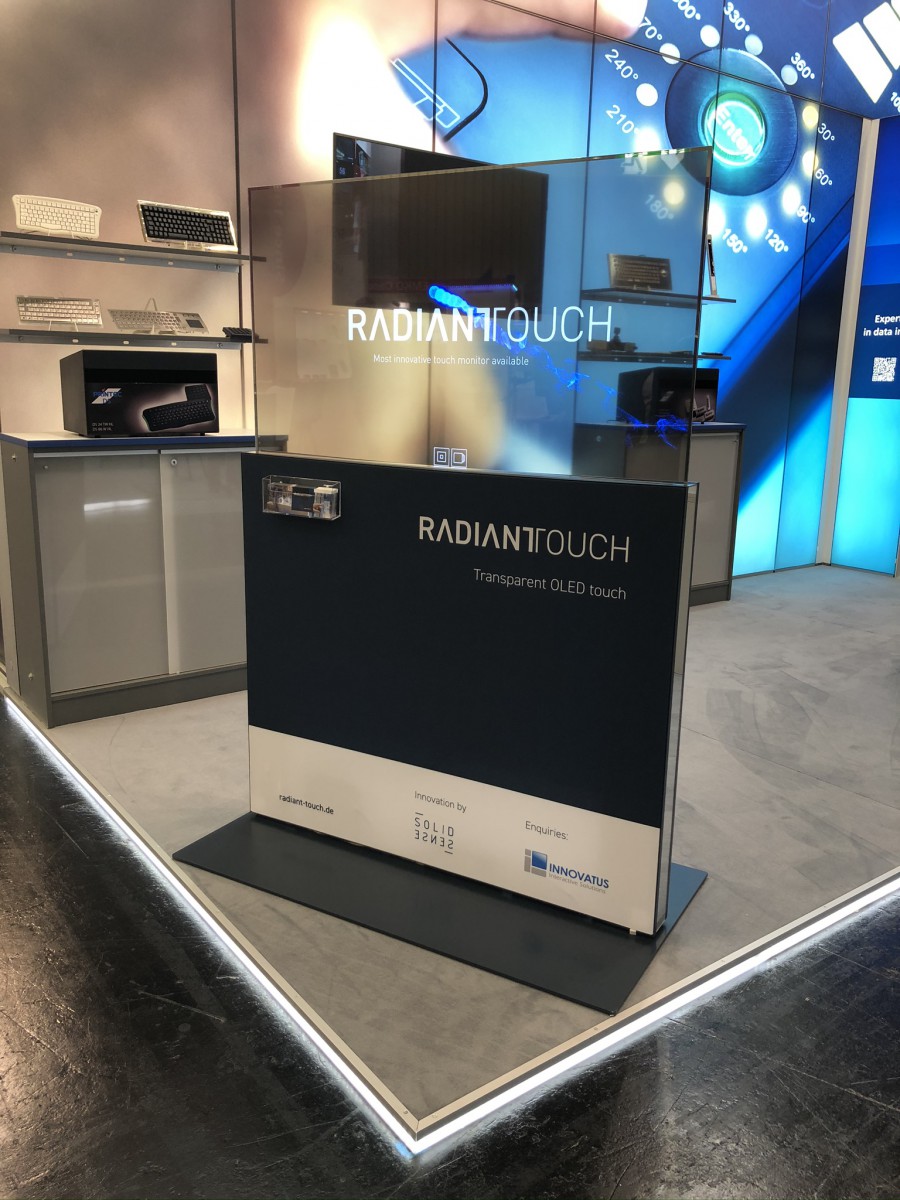

The resulting Radiant Touch™ interactive transparent display delivers a captivating AV experience, ideal for promoting premium brands or for use in prestigious locations.

To watch a video showing the trade fair demonstration, please visit: https://www.youtube.com/watch?v=uBG1KZrzdkA

If you would like to discuss your latest project needs, please email us at info@zytronic.co.uk, or send us an enquiry to find out more about the ZyBrid® multitouch sensor. For more information about Zytronic, please visit: www.zytronic.co.uk

About Zytronic
Zytronic Displays Ltd internationally award-winning touch sensors are used globally in ATMs, digital signage, self-service kiosks and gaming machines as well as by industrial and medical OEMs. The company’s success rests on its patented and highly durable touch sensing technologies, which can be provided in custom designs of 85” and beyond.

In addition to its manufacturing and R&D centre in Newcastle, England, Zytronic has sales offices in Taipei, Tokyo, and Atlanta, Georgia and a worldwide network of representatives and distributors. For further information, please visit https://zytronic.co.uk/

About Printec-DS Keyboard GmbH
Printec-DS Keyboard GmbH develops innovative touch system solutions with application-specific design by integrating additional, individual control elements (e.g. buttons with or without symbol backlighting). These are installed in high-quality and robust housings, made of stainless steel or plastic, with optimal protection against dirt, moisture or vandalism. Development and production of standard and customer-specific long-stroke keyboards, as well as individual foil and silicone keyboards with special surfaces and coatings, are another important part of their range.
